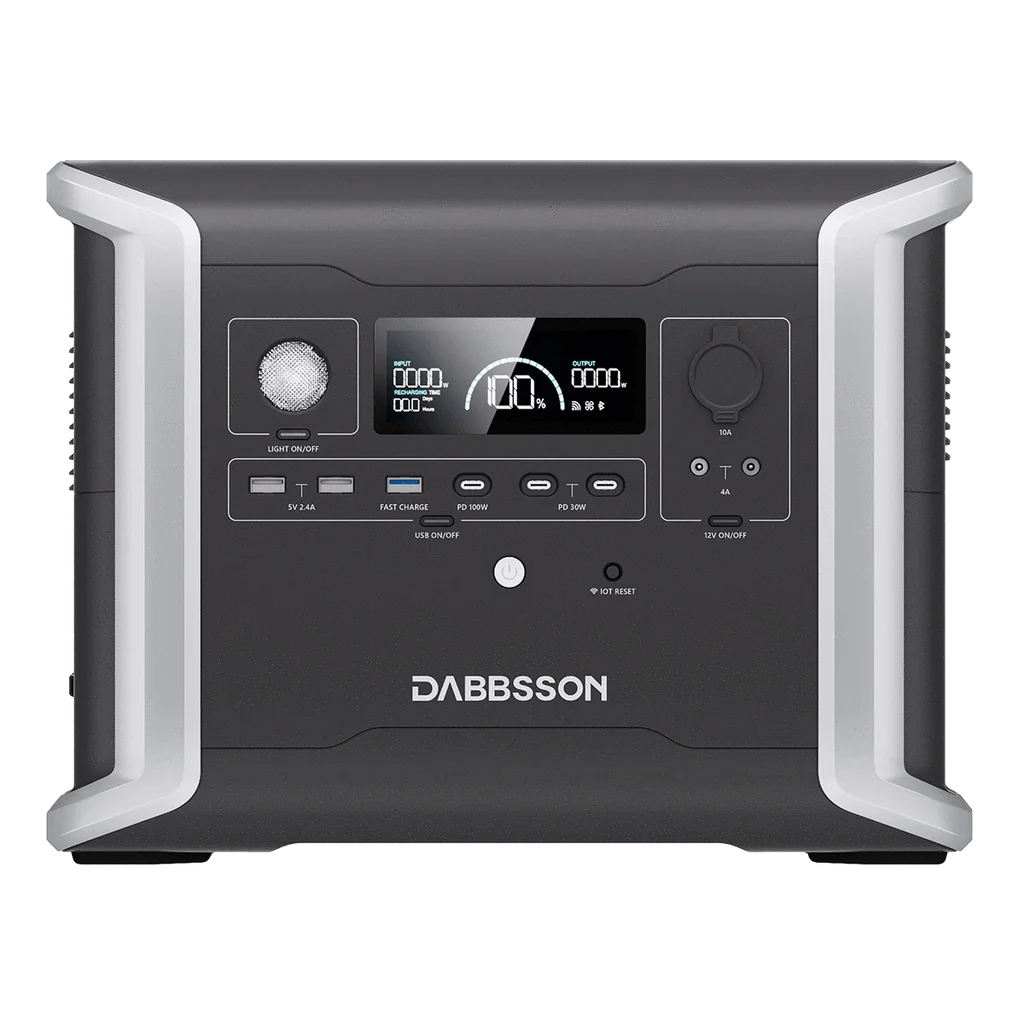

Dabbsson DBS1300 Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity1330 Wh
AC output1,200 W
Surge2,400 W
ChemistryEV semi-solid state LiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-08-21
Swipe table sideways
| Battery capacity | 1330 Wh |
|---|---|
| Battery chemistry | EV semi-solid state LiFePO4 |
| AC output | 1,200 W |
| Surge output | 2,400 W |
| DC output | 126 W |
| USB-C output | 100 W |
| Solar input | 400 W |
| Weight | 16.3 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-21 |
Dabbsson separately labels 1600 W as Power-Boost. The catalog keeps that mode distinct from the table's explicit 2400 W surge rating; 126 W is the highest single DC output (car outlet), while each DC5521 outlet is lower.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 6h 10m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 1d 1h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 1d 9h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 3d 15h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 10h 10m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Dabbsson DBS1300 prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 1330 WhContinuous output rating (W): 1200 WSurge output rating (W): 2400 W
Estimated runtime16h 57m10h 37m – 21h 3mEstimated runtime: 16h 57m, 10h 37m – 21h 3m
Output path
Estimated runtime
16h 57mEstimated runtime: 16h 57mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative10h 37m
Estimated16h 57m
Optimistic21h 3m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 1330 Wh
- Usable energy
- 1017 Wh
- 1330 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 16h 57m
- 1017 Wh / 60 W = 16h 57m
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
16h 57mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1017 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative10h 37m
Estimated16h 57m
Optimistic21h 3m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy1017 Wh1330 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime16h 57m1017 Wh / 60 W = 16h 57m
Assumptions
- 1330 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a mid-size planning class that can cover many overnight or essential-load scenarios when reserve and efficiency are included.
- Tracked AC output is 1,200 W, so high-draw appliances and tools need careful filtering.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 400 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related Dabbsson Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
DBS1400 Pro
1,382 Wh, 2,400 W AC output, confidence: Verified.
DBS1000 Pro
1,024 Wh, 2,000 W AC output, confidence: Verified.
1000L
1,008 Wh, 1,200 W AC output, confidence: Verified.
Sources
- Dabbsson DBS1300 product page (official; checked 2026-08-21)
