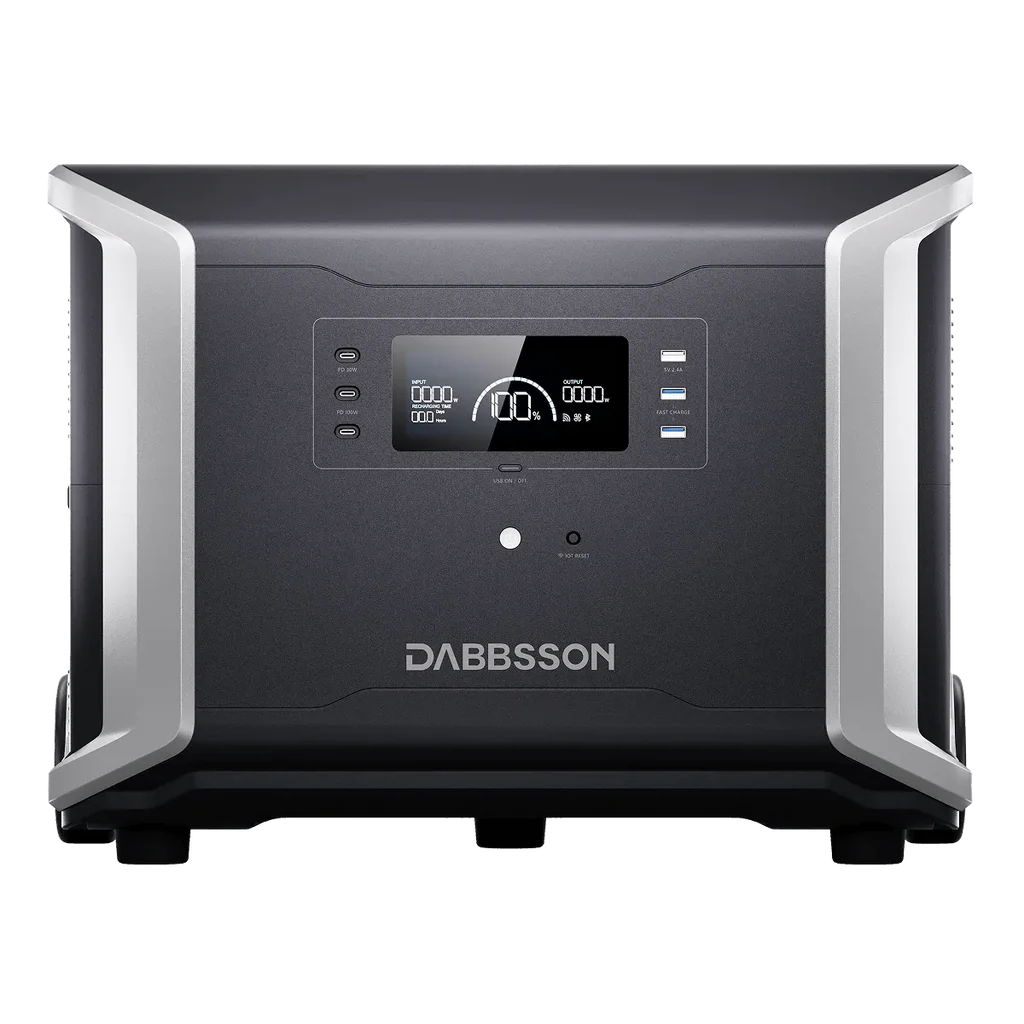

Dabbsson DBS3500 Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity3430 Wh
AC output3,600 W
Surge7,200 W
ChemistryEV semi-solid state LiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-08-21
Swipe table sideways
| Battery capacity | 3430 Wh |
|---|---|
| Battery chemistry | EV semi-solid state LiFePO4 |
| AC output | 3,600 W |
| Surge output | 7,200 W |
| DC output | 378 W |
| USB-C output | 100 W |
| Solar input | 2,400 W |
| Weight | 41 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-21 |
The 378 W DC ceiling is one Anderson output rated at 12.6 V/30 A or 24 V/15 A, not a sum across ports. The car outlet is 126 W and each DC5521 outlet is lower.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 15h 54m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 2d 17h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 3d 14h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 9d 10h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 1d 2h | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Dabbsson DBS3500 prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 3430 WhContinuous output rating (W): 3600 WSurge output rating (W): 7200 W
Estimated runtime1d 19h1d 3h – 2d 6hEstimated runtime: 1d 19h, 1d 3h – 2d 6h
Output path
Estimated runtime
1d 19hEstimated runtime: 1d 19hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 3h
Estimated1d 19h
Optimistic2d 6h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 3430 Wh
- Usable energy
- 2624 Wh
- 3430 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 1d 19h
- 2624 Wh / 60 W = 1d 19h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
1d 19hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy2624 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 3h
Estimated1d 19h
Optimistic2d 6h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy2624 Wh3430 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime1d 19h2624 Wh / 60 W = 1d 19h
Assumptions
- 3430 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 2,400 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
- Tracked weight is in a heavier class; plan where it will live before treating it as a grab-and-go station.
Related Dabbsson Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
3000L
3,072 Wh, 3,000 W AC output, confidence: Verified.
DBS2300
2,330 Wh, 2,200 W AC output, confidence: Verified.
DBS2300 Plus
2,330 Wh, 2,200 W AC output, confidence: Verified.
Sources
- Dabbsson DBS3500 product page (official; checked 2026-08-21)
