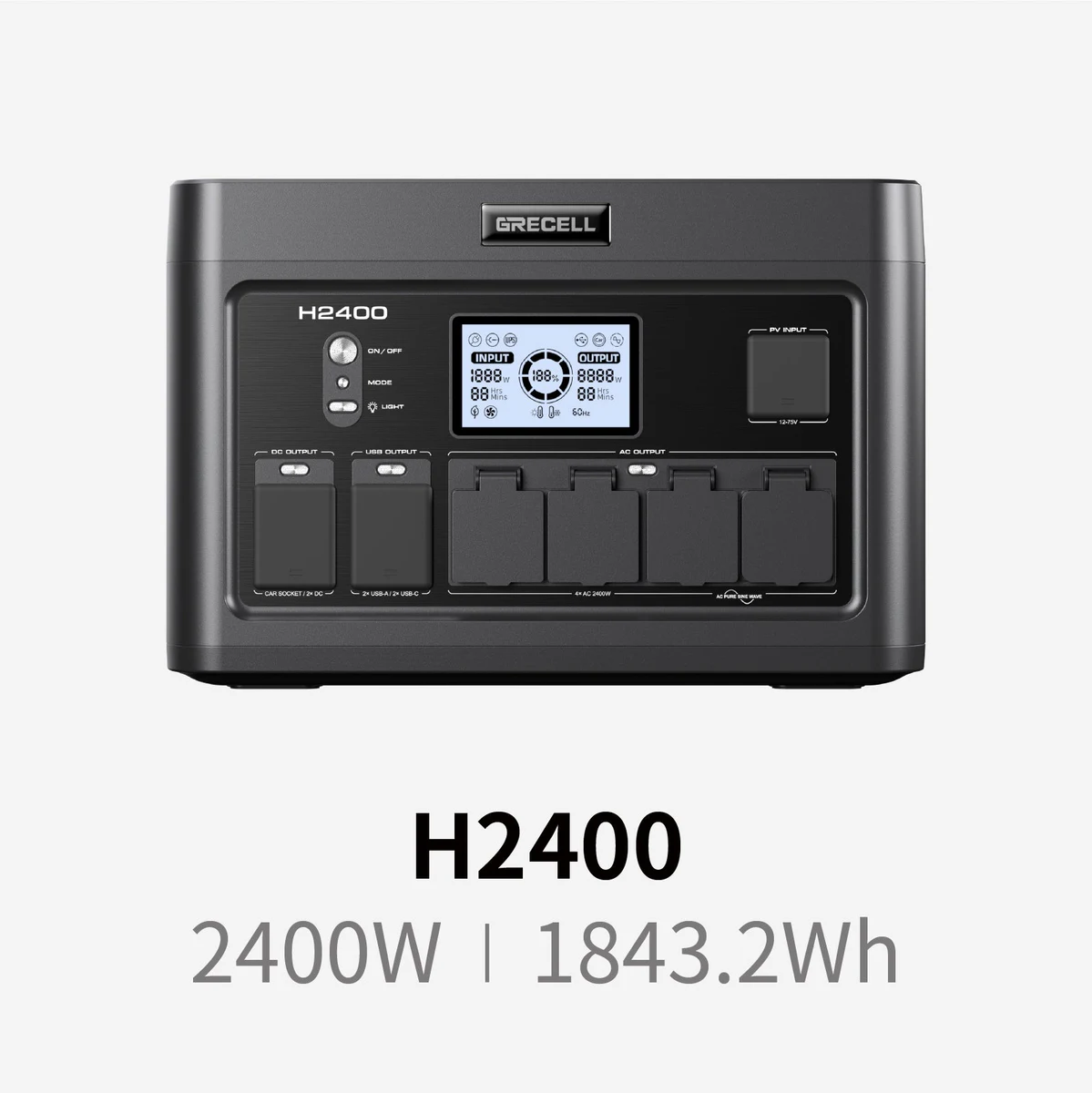

GRECELL 2400W Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity1843.2 Wh
AC output2,400 W
Surge4,800 W
ChemistryLiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-08-20
Swipe table sideways
| Battery capacity | 1843.2 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 2,400 W |
| Surge output | 4,800 W |
| DC output | 120 W |
| USB-C output | 100 W |
| Solar input | 800 W |
| Weight | 24.95 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-20 |
The DC field uses the explicitly published 12V/10A car-port ceiling. The two independent 12V/5A DC5521 ratings are not added to it. GRECELL's H2400 accessories page currently links its user-guide callout to a T-1000 manual, so that mismatched PDF is not used as H2400 evidence.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 8h 33m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 1d 11h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 1d 22h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 5d 1h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 14h 6m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with GRECELL 2400W prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 1843 WhContinuous output rating (W): 2400 WSurge output rating (W): 4800 W
Estimated runtime23h 30m14h 42m – 1d 5hEstimated runtime: 23h 30m, 14h 42m – 1d 5h
Output path
Estimated runtime
23h 30mEstimated runtime: 23h 30mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative14h 42m
Estimated23h 30m
Optimistic1d 5h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 1843 Wh
- Usable energy
- 1410 Wh
- 1843 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 23h 30m
- 1410 Wh / 60 W = 23h 30m
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
23h 30mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1410 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative14h 42m
Estimated23h 30m
Optimistic1d 5h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy1410 Wh1843 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime23h 30m1410 Wh / 60 W = 23h 30m
Assumptions
- 1843 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a mid-size planning class that can cover many overnight or essential-load scenarios when reserve and efficiency are included.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 800 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related GRECELL Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Sources
- GRECELL 2400W product specifications (official; checked 2026-08-20)
