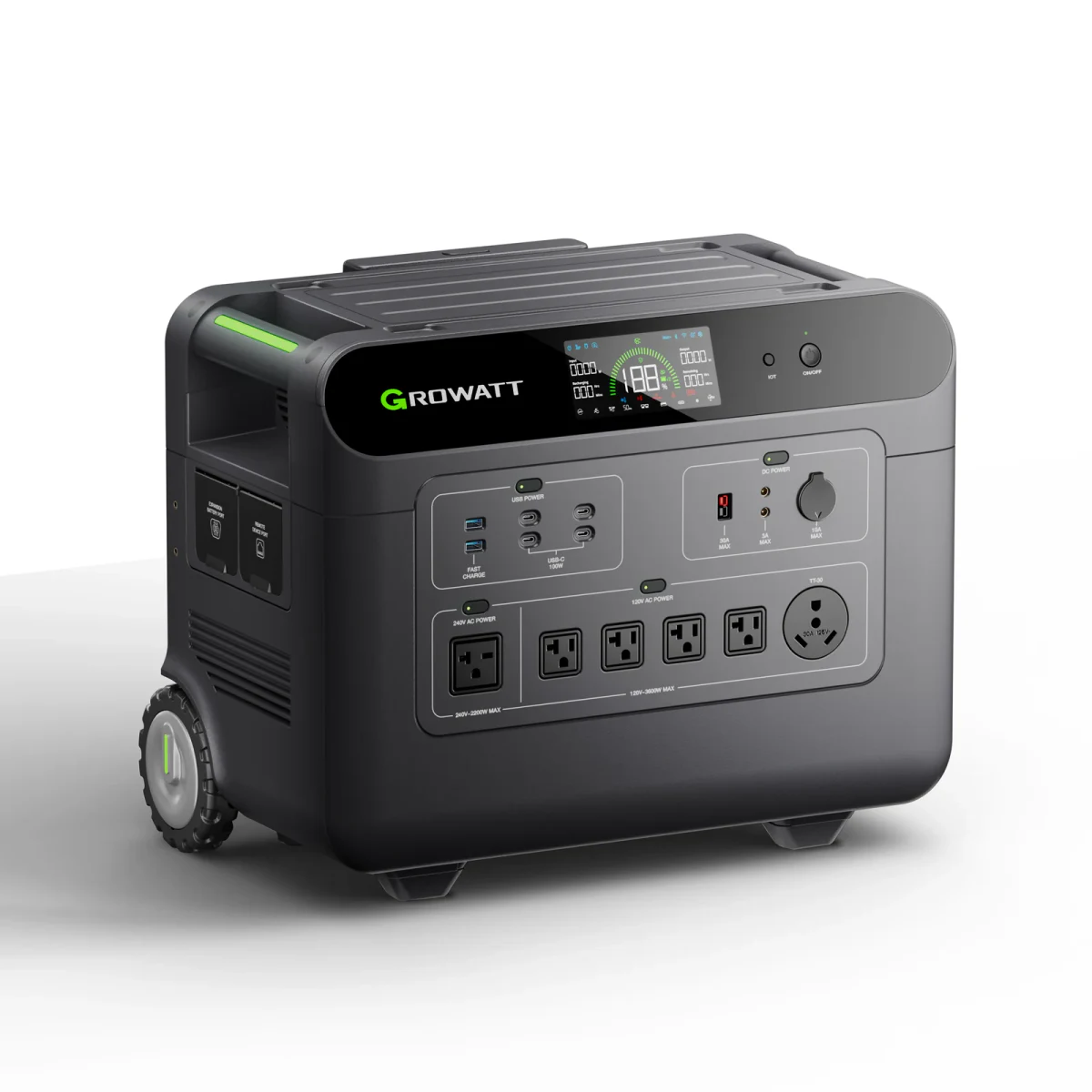

Growatt HELIOS 3600 Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity3686.4 Wh
AC output3,600 W
Surgeunknown
ChemistryLiFePO4
ConfidenceEstimated
Source regionglobal/general
Checked2026-08-07
Swipe table sideways
| Battery capacity | 3686.4 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 3,600 W |
| Surge output | unknown |
| DC output | 396 W |
| USB-C output | 100 W |
| Solar input | 2,000 W |
| Weight | 45 kg |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-07 |
Surge output stays unknown because the checked official table publishes rated AC output per outlet group without a peak rating. The 3600W figure is the published total across the four 20A outlets; the same table lists a separate 2200W 240V outlet. DC output uses the listed 13.2V/30A Anderson port. Expansion batteries are sold separately and are not modeled here.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 17h 5m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 2d 22h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 3d 21h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 10d 3h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 1d 4h | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Growatt HELIOS 3600 prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 3686 WhContinuous output rating (W): 3600 WSurge output rating (W): n/a
Estimated runtime1d 23h1d 5h – 2d 10hEstimated runtime: 1d 23h, 1d 5h – 2d 10h
Output path
Estimated runtime
1d 23hEstimated runtime: 1d 23hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 5h
Estimated1d 23h
Optimistic2d 10h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 3686 Wh
- Usable energy
- 2820 Wh
- 3686 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 1d 23h
- 2820 Wh / 60 W = 1d 23h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
1d 23hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy2820 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 5h
Estimated1d 23h
Optimistic2d 10h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy2820 Wh3686 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime1d 23h2820 Wh / 60 W = 1d 23h
Assumptions
- 3686 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 2,000 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is unknown, so do not assume compressor, pump, or power-tool startup will work.
- Still unknown in the source-backed record: surge output.
- Tracked weight is in a heavier class; plan where it will live before treating it as a grab-and-go station.
- Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
Related Growatt Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
INFINITY 2000 PRO
2,048 Wh, 2,400 W AC output, confidence: Verified.
INFINITY 1500
1,512 Wh, 1,800 W AC output, confidence: Verified.
Sources
- Growatt HELIOS 3600 product specifications (official; checked 2026-08-07)
