Jackery Explorer 5000 Plus Runtime Calculator

Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.

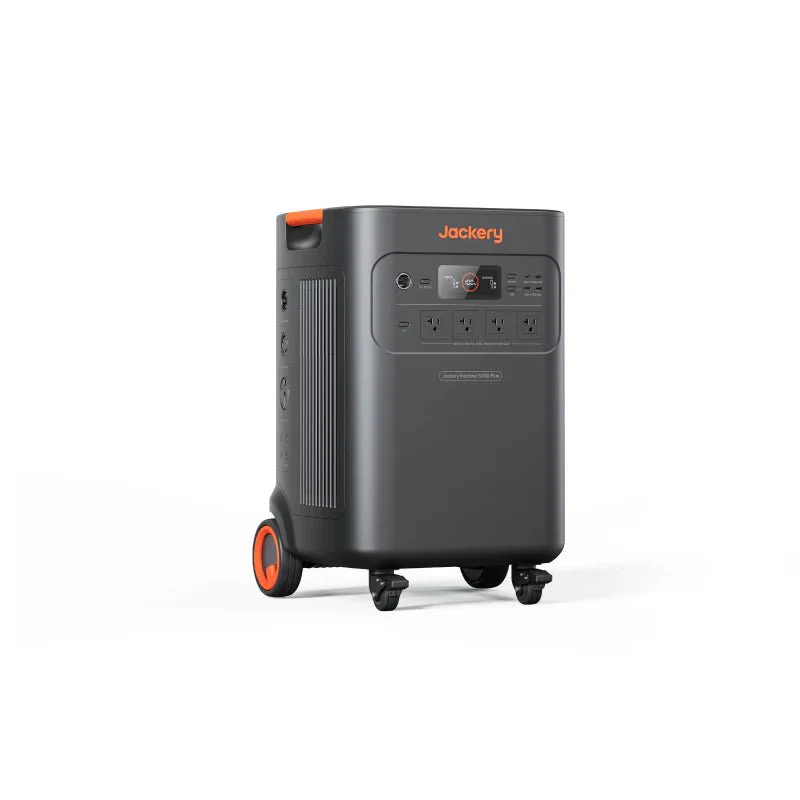

Jackery Explorer 5000 Plus portable power station
Capacity5040 Wh
AC output7,200 W
Surge14,400 W
ChemistryLiFePO4
ConfidenceEstimated
Source regionglobal/general
Checked2026-08-21
Swipe table sideways
Key specifications for Jackery Explorer 5000 Plus.
Battery capacity5040 Wh
Battery chemistryLiFePO4
AC output7,200 W
Surge output14,400 W
DC output120 W
USB-C output100 W
Solar input4,000 W
Weight61 kg
ConfidenceEstimated
Lifecycle statusUnknown
Source regionglobal/general
Last verified2026-08-21
The exact manual and current product page publish 7200W rated / 14400W surge, while the current support table lists 7200W as maximum instantaneous output. The record follows the manual/product page and remains estimated until Jackery reconciles the conflict. Solar input stores the 4000W high-voltage roof-PV ceiling; the two low-voltage DC8020 ports are separately capped at 21A/1200W.

Third-party measured tests

These are published third-party measurements for this model. The delta compares measured delivered Wh with WattRunTime's default no-reserve planning estimate for the same output path; it is not a new measurement.

Swipe table sideways
Third-party measured runtime and capacity records for Jackery Explorer 5000 Plus.
TestMeasuredDefault estimateVs estimateSource
Capacity test (AC)
test date unknown		4,450 Wh
88% usable		4,284 Wh+166 Wh (+4%)HoboTech Jackery Explorer 5000 Plus review
accessed 2026-08-07
Open the measured runtime library

Runtime Starting Points

These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.

Swipe table sideways
Runtime starting-point estimates for Jackery Explorer 5000 Plus.
ScenarioDefault loadEstimateScenario confidenceStation page
Full-size refrigerator500 W at 33%23h 22mEstimatedOpen estimate
CPAP without heated humidifier40 W at 100%4d 0hEstimatedOpen estimate
Starlink Mini32 W at 100%5d 7hEstimatedOpen estimate
Wi-Fi router12 W at 100%13d 20hEstimatedOpen estimate
LED TV100 W at 100%1d 14hEstimatedOpen estimate
Open calculator with this station

Calculator for this station

Adjust watts, duty cycle, reserve, output path, and startup surge with Jackery Explorer 5000 Plus prefilled from the source-linked specs above.

Loading calculatorPreparing calculator
Power station model
Battery capacity (Wh): 5040 WhContinuous output rating (W): 7200 WSurge output rating (W): 14400 W
Jackery Explorer 5000 Plus
Estimated runtime2d 16h1d 16h – 3d 7hEstimated runtime: 2d 16h, 1d 16h – 3d 7h
Output path

Estimated runtime

2d 16hEstimated runtime: 2d 16h

This setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.

Conservative1d 16h
Estimated2d 16h
Optimistic3d 7h

Conservative assumes harder conditions; optimistic assumes favorable conditions.

  • This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.

Show your work

Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.

Rated battery
5040 Wh
Usable energy
3856 Wh
5040 Wh x 85% x 90% x 100% x 100%
Running watts
60 W
Average load
60 W
Max surge
n/a
Fixed station overhead
Unknown (not included)
60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime
2d 16h
3856 Wh / 60 W = 2d 16h
Output path
AC inverter
Efficiency (%)
85
Reserve kept unused (%)
10
Battery health (%)
100
Cold weather loss (%)
0

This link contains the numeric values you entered, but not custom load names.

Source-Backed Next Steps

WattRunTime.com

WattRunTime estimate

Estimated runtime

2d 16hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Usable energy3856 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a

Runtime range

Conservative1d 16h
Estimated2d 16h
Optimistic3d 7h

Show your work

Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.

Usable energy3856 Wh5040 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime2d 16h3856 Wh / 60 W = 2d 16h

Assumptions

  • 5040 Wh nominal battery capacity
  • AC inverter output path
  • 85% conversion efficiency
  • 10% reserve kept unused
  • 60 W average load from 1 load
  • 100% battery health
  • 0% temperature loss
  • Fixed station overhead unknown; not included

Warnings

  • This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.

Good fit when

  • Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
  • Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
  • USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
  • Tracked solar input is 4,000 W before panel, weather, angle, and controller losses.

Watch out for

  • Surge output is tracked, but device startup behavior should still be checked against the actual load.
  • Tracked weight is in a heavier class; plan where it will live before treating it as a grab-and-go station.
  • Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
